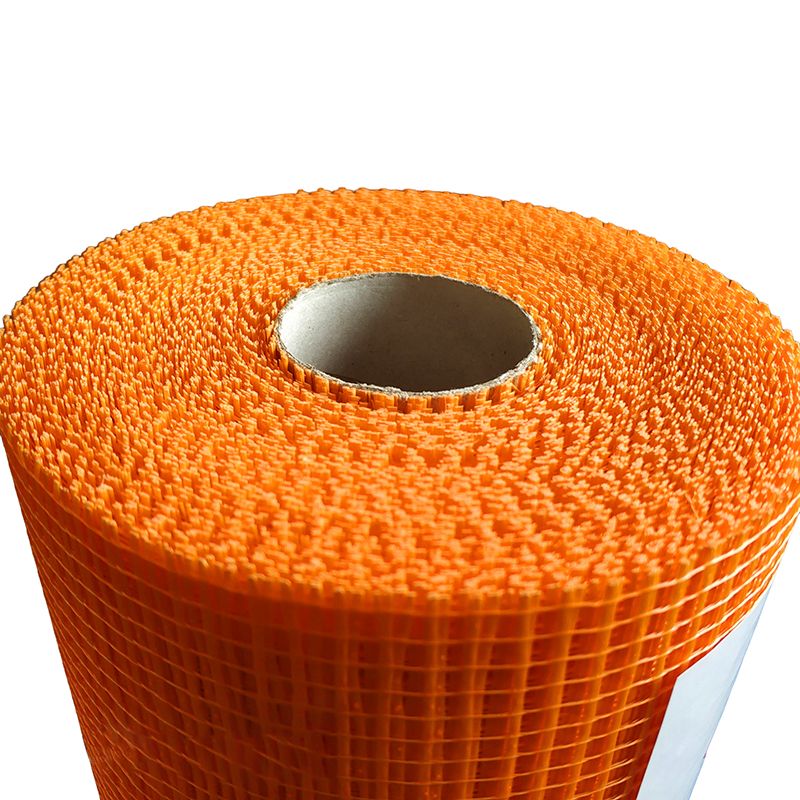

ETICS Fiberglass Mesh

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of etics fiberglass mesh in China. With abundant experience, we warmly welcome you to wholesale bulk etics fiberglass mesh made in China here from our factory. All customized products are with high quality and competitive price.

ETICS Fiberglass Mesh is a reinforcing fabric developed specifically for External Thermal Insulation Composite Systems. We manufacture the mesh from woven fiberglass yarn and apply an alkali-resistant polymer coating to ensure stable performance inside cement-based base coats.

In ETICS construction, the insulation board itself provides thermal performance, but the durability of the entire facade often depends on the reinforcing layer hidden beneath the finish. From our experience, many surface defects that appear years after installation can be traced back to insufficient reinforcement or uneven stress distribution within the render layer.

For this reason, fiberglass mesh has become a standard component in modern insulation systems. Once integrated into the base coat, it helps stabilize the facade, improves impact resistance, and reduces the likelihood of cracking caused by everyday environmental and structural influences.

Working Principle

Exterior insulation systems face constant movement throughout their service life. Temperature fluctuations cause expansion and contraction. Buildings settle over time. Cement-based materials also undergo shrinkage during curing.



These movements generate tensile stress inside the render layer. Without reinforcement, stress tends to accumulate around weak points such as joints, corners, window openings, and transitions between different substrates.



When installers embed ETICS Fiberglass Mesh into fresh base coat mortar, the mesh creates a continuous reinforcing network across the facade. The grid structure spreads stress throughout a larger area rather than allowing it to concentrate locally. As a result, the render layer remains more stable and less susceptible to cracking.



Another factor often overlooked is the alkaline nature of cement mortar. Over extended periods, alkaline exposure can gradually damage unprotected glass fibers. We address this challenge by applying a specialized alkali-resistant coating. The coating shields the fiberglass yarn and helps maintain its reinforcing capacity throughout the lifespan of the insulation system.

• Mechanical Reinforcement：The mesh contributes additional tensile strength to ETICS assemblies and improves the overall integrity of the render layer. This becomes particularly important in large facade areas where thermal movement is unavoidable.
• Resistance to Alkaline Environments：Cement-based mortars create highly alkaline conditions. The protective coating helps preserve fiber strength and supports long-term durability within the system.
• Improved Impact Performance：In practice, exterior walls are regularly exposed to accidental impacts, especially at ground level and around entrances. Reinforcement mesh helps the render layer withstand these loads more effectively.
• Easy Handling on Site：The mesh remains lightweight and flexible. Installers can cut, position, and embed it efficiently without adding complexity to the application process.
• No Corrosion Concerns：Unlike steel reinforcement products, fiberglass mesh does not rust. This eliminates one of the common causes of long-term deterioration in exterior wall systems.

• Compatibility with ETICS Materials：The open-grid structure allows mortar to penetrate and fully encapsulate the yarns. This creates a strong mechanical connection between the mesh and the surrounding base coat.

Applications

• External Thermal Insulation Composite Systems (ETICS)：This remains the primary application for fiberglass reinforcement mesh. Embedded within the base coat, it forms the structural reinforcement layer that supports the render system.
• EIFS Wall Systems：Many EIFS installations use fiberglass mesh to improve crack resistance and increase the durability of decorative facade finishes.
• Exterior Wall Reinforcement：Contractors often select reinforcement mesh for wall areas exposed to movement, stress concentration, or increased mechanical loading.
• Facade Finishing Systems：Decorative coatings and textured finishes perform more reliably when applied over a properly reinforced substrate. The mesh helps maintain surface stability over time.

• Waterproofing Systems：Fiberglass mesh is frequently incorporated into cementitious waterproofing layers where additional tensile strength and crack control are required.

• Renovation and Refurbishment Projects：From our experience, renovation work presents some of the most demanding conditions. Existing cracks, weakened substrates, and uneven surfaces can compromise new finishes. Reinforcement mesh provides an effective way to stabilize these areas before applying new render systems.

• The performance of ETICS Fiberglass Mesh depends on the interaction between two essential components rather than a single material layer.
• The first component is the woven fiberglass base fabric. We typically produce this layer using high-strength E-glass or C-glass yarns arranged in a stable grid structure. It provides the tensile strength and dimensional stability required to accommodate facade movement and resist impact loads.
• The second component is the alkali-resistant coating. In our view, this layer is equally important. It binds the individual filaments together, improves handling during installation, and forms a protective barrier between the fiberglass and the alkaline cement environment. Without this protection, the reinforcing performance of the mesh would gradually decline over time.
• The combination of these two layers allows the mesh to perform reliably within ETICS systems, even under long-term exposure to weather, thermal cycling, and mechanical stress.
