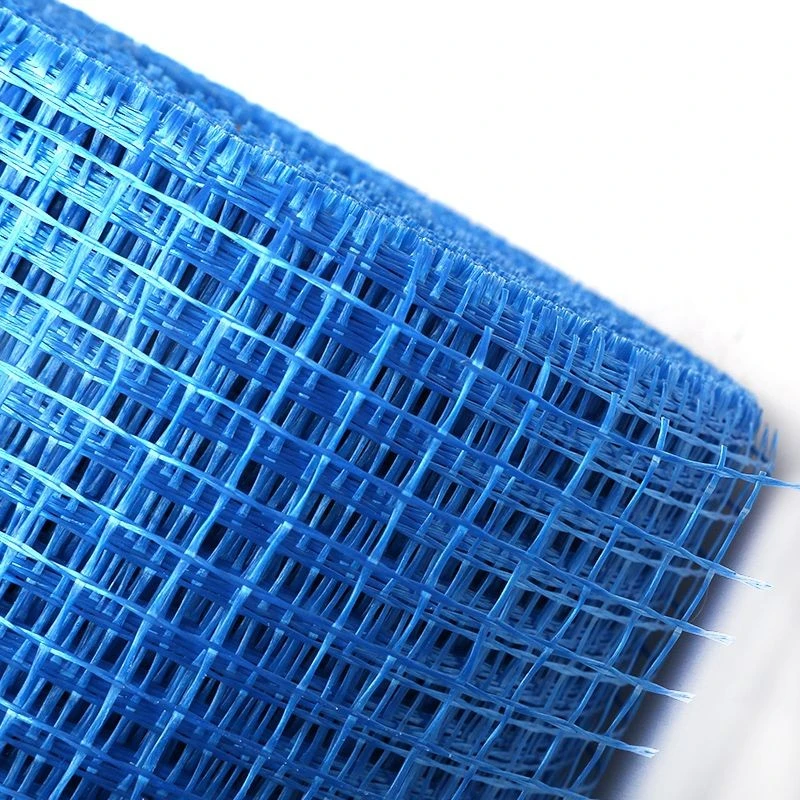

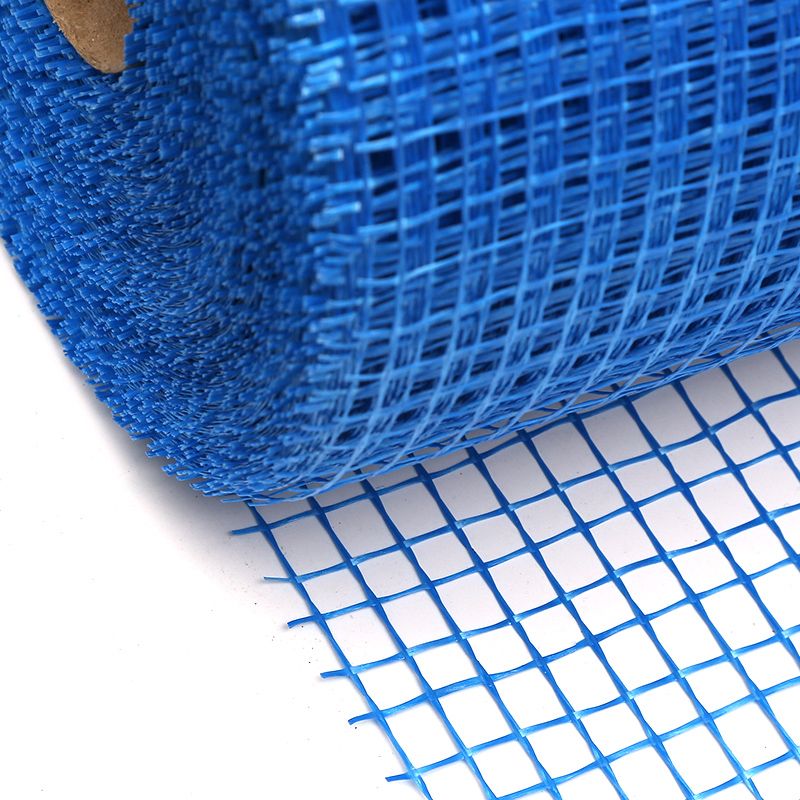

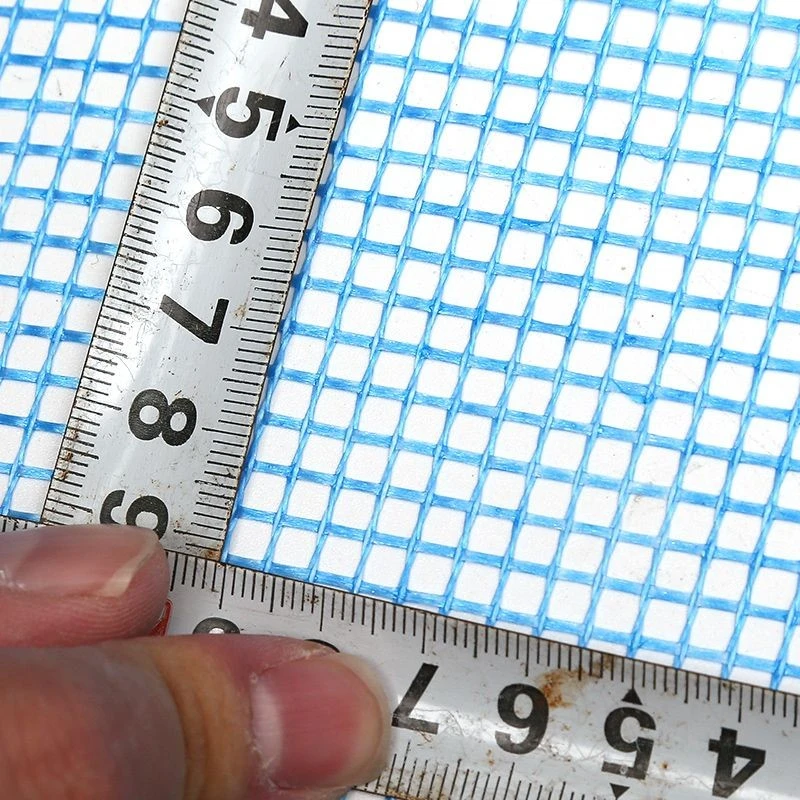

Building Insulation Mesh
Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of building insulation mesh in China. With abundant experience, we warmly welcome you to wholesale bulk building insulation mesh made in China here from our factory. All customized products are with high quality and competitive price.
Product Description
Building Insulation Mesh is a reinforcement material used in exterior wall insulation systems to improve the stability and durability of the overall wall assembly. Depending on project requirements, the mesh may be manufactured from alkali-resistant fiberglass, galvanized steel wire, or selected polymer materials. After weaving and surface treatment, it becomes an integral component within the insulation and rendering system.
Insulation boards provide thermal performance, but the long-term reliability of the facade depends largely on the strength of the protective layers surrounding them. Cracking, debonding, and hollow areas often originate within the render layer, especially when the building is exposed to temperature fluctuations, moisture, or structural movement. Reinforcement mesh helps control these issues by strengthening the connection between system layers and improving the mechanical performance of the facade.
Working Principle
Exterior wall systems are constantly subjected to thermal expansion, contraction, curing shrinkage, wind loads, and minor structural movement. These forces create tensile stress within the render layer.
Without reinforcement, stress tends to concentrate around corners, openings, joints, and areas where different materials meet. Over time, localized stress may lead to cracking and surface deterioration.
When embedded into fresh mortar or plaster, the building insulation mesh forms a continuous reinforcing framework throughout the wall surface. The grid structure distributes tensile forces more evenly and helps prevent stress accumulation in isolated areas. As a result, the render layer becomes more resistant to cracking and mechanical damage.
Cement-based materials also create a strongly alkaline environment. To address this challenge, alkali-resistant fiberglass mesh incorporates a protective coating that shields the glass fibers from chemical attack and helps maintain long-term reinforcing performance.
Key Features
- Wide Substrate Compatibility：Suitable for concrete walls, clay brick, aerated concrete blocks, insulation boards, cement panels, and other common construction substrates.
- Durability Under Exterior Exposure：The mesh maintains stable performance under sunlight, rainfall, humidity, seasonal temperature changes, and other environmental influences commonly encountered in facade applications.
- Additional Tensile Reinforcement：The woven structure improves the tensile strength of the render layer and helps the wall system accommodate movement without developing surface cracks.
-
Contribution to Fire Safety：Fiberglass is an inorganic material that does not support combustion. When incorporated into a complete facade system, it contributes to the fire performance requirements of the building envelope.
-
Ease of Handling：The material is lightweight, flexible, and easy to cut. It adapts well to corners, edges, and irregular surfaces, simplifying installation during construction.
Applications
- External Thermal Insulation Systems (EIFS / ETICS)：Embedded within the base coat over EPS, XPS, mineral wool, and other insulation boards, the building insulation mesh strengthens the render layer and improves crack resistance throughout the insulation system.
- Cement Rendering Systems：Used in cement- and plaster-based rendering applications to enhance mechanical strength and reduce cracking associated with shrinkage and thermal movement.
- Facade Finishing Systems：Provides reinforcement beneath decorative coatings, textured finishes, and architectural render systems, helping maintain long-term surface stability.
-
Waterproofing Applications：Integrated into cementitious waterproofing coatings and membranes to improve tensile performance and reduce the risk of cracking in exposed areas.
-
Concrete Surface Reinforcement：Supports cement-based surfaces by improving dimensional stability and limiting crack propagation during curing and service.
-
Building Renovation Projects：Frequently incorporated into facade refurbishment work where existing walls exhibit cracking, substrate deterioration, or surface instability. The building insulation mesh provides a stable reinforcing layer before the application of new render or finishing materials.
