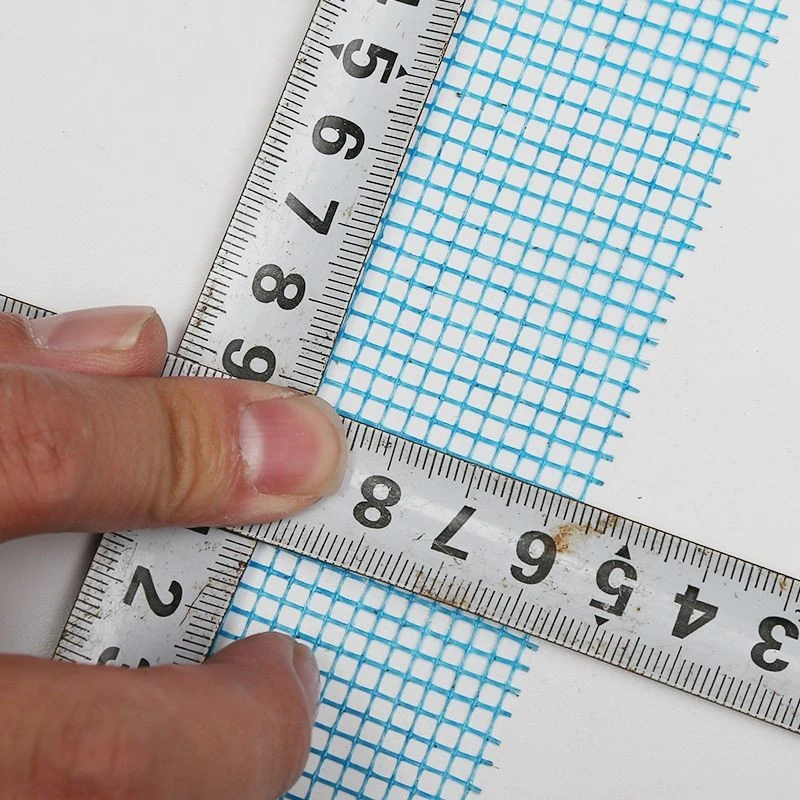

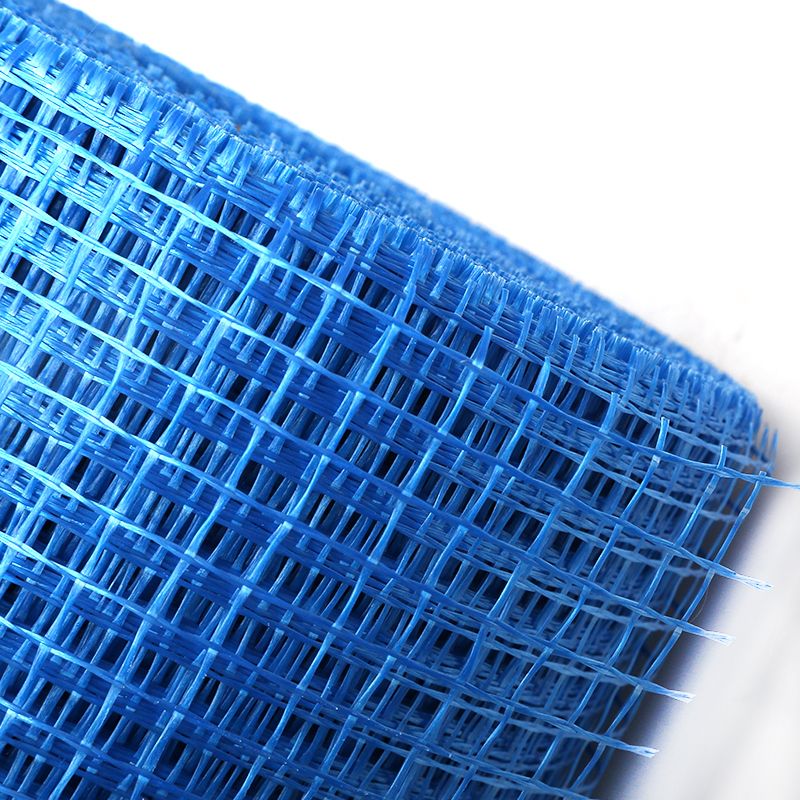

EIFS Fiberglass Mesh
Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of eifs fiberglass mesh in China. With abundant experience, we warmly welcome you to wholesale bulk eifs fiberglass mesh made in China here from our factory. All customized products are with high quality and competitive price.
Product Description
EIFS Fiberglass Mesh is a specialized alkali-resistant reinforcement fabric engineered exclusively for Exterior Insulation and Finish Systems (EIFS). Woven from high-strength fiberglass yarn and coated with a premium alkali-resistant polymer, it serves as the critical structural "skeleton" within the EIFS base coat, ensuring the facade's long-term durability, impact resistance, and crack-free performance.
Working Principle
EIFS fiberglass mesh works as a structural reinforcement layer inside the base coat of insulation systems.
When embedded into the wet base coat, it forms a continuous stress-distribution network. This helps absorb and disperse tensile stress caused by temperature changes, building movement, and shrinkage of materials. As a result, it significantly reduces the risk of cracking and surface failure.
The alkali-resistant coating protects the fiberglass fibers from degradation in alkaline cement environments, ensuring long-term performance.
Key Features
- Essential reinforcement layer in EIFS systems
- Improves system durability and lifespan
- Prevents cracking in insulation and finish layers
- Enhances impact and weather resistance
- Compatible with multiple EIFS materials
-
Suitable for high-rise and residential buildings
Technical parameters
|
Brand |
Yonggu |
Color |
Standard color is white; other colors can be customized |
|
Mesh Size |
2.85mm/3.2mm, etc. |
Weight |
50gsm~70gsm |
|
Length per Roll |
45m/90m/153m, etc. |
Width |
50mm/100mm, etc. |
|
Material |
Medium-alkali glass fiber yarn, twisted spun yarn |
Coating |
Modified acrylic copolymer emulsion, water-based environmentally friendly pressure-sensitive adhesive |
|
Packaging |
Each roll of PVC is shrunken and packaged in a cardboard box. |
||
|
Note |
If you have special specifications, we will produce according to your requirements or samples. |
||
Applications
- This EIFS fiberglass mesh is the ideal solution for a variety of construction scenarios：Residential & Commercial Construction: Reinforcing the base coat in standard EIFS facades for new builds.
- Building Renovation & Retrofitting：Strengthening existing facades during energy-efficiency upgrade projects.
- Public Infrastructure：Used in schools, hospitals, and government buildings requiring high-impact resistance.
- Architectural Detailing：Reinforcing decorative moldings, cornices, window reveals, and other complex architectural elements.
Customization Capabilities
We offer flexible customization to meet specific project requirements:
- Weight & Density：Available in a range from 80g/m² to 160g/m² (or heavier upon request).
- Mesh Aperture：Custom grid sizes available beyond the standard 4x4mm and 5x5mm.
- Dimensions： Roll lengths and widths can be tailored to minimize on-site waste.
- Color Coding：Various colors (Blue, Orange, Green, White, Yellow) available for easy on-site identification and quality control.
