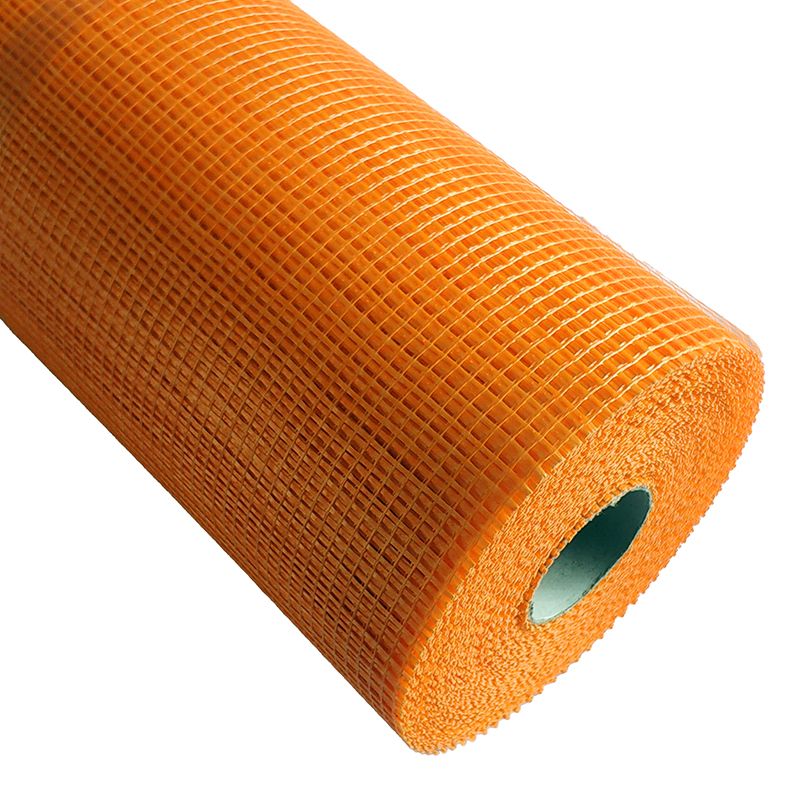

Exterior Wall Crack Resistant Mesh

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of exterior wall crack resistant mesh in China. With abundant experience, we warmly welcome you to wholesale bulk exterior wall crack resistant mesh made in China here from our factory. All customized products are with high quality and competitive price.

Exterior Wall Crack Resistant Mesh is produced from woven fiberglass yarns and finished with an alkali-resistant acrylic coating developed for cement-based construction systems. It serves as a reinforcing layer inside renders, base coats and external insulation systems where long-term dimensional stability is required.

From our experience, most cracks found on exterior facades are not caused by poor mortar quality alone. They usually result from continuous movement within the wall assembly. Daily temperature changes, moisture variation and slight structural movement gradually concentrate stress in localized areas. Reinforcement mesh helps disperse these forces before visible cracking develops.

Unlike ordinary woven fabrics, fiberglass mesh remains lightweight while offering stable tensile strength. Once fully embedded in mortar, it becomes part of the reinforcement layer rather than simply covering the surface.

Reinforcement Mechanism

Exterior rendering constantly experiences expansion and contraction. Even well-applied mortar develops internal tension during curing and throughout seasonal temperature cycles.



Fiberglass mesh forms a continuous reinforcement network inside the render layer. Instead of allowing stress to build around one weak point, the mesh spreads the load over a much larger area. In practice, this greatly reduces the possibility of shrinkage cracks, corner fractures and surface crazing.



Another factor often overlooked is the alkaline environment created by cement. Standard fiberglass gradually loses strength under these conditions. For this reason, we apply a modified alkali-resistant polymer coating that isolates the glass fibers from direct chemical attack. The reinforcement remains stable even after prolonged exposure to cement-based materials.

• Reliable Crack Control：The exterior wall crack resistant mesh distributes tensile stress throughout the render layer and helps limit both shrinkage cracks and stress-induced cracking. It also improves adhesion between adjacent coating layers, reducing the chance of surface delamination.
• Long-Term Alkali Resistance：Our coating system maintains the integrity of the fiberglass even in highly alkaline mortar. Laboratory testing shows that the mesh retains more than 75% of its original tensile strength after alkaline exposure, meeting common international performance requirements.
• Stable Tensile Performance：High-strength fiberglass yarn provides consistent reinforcement across both horizontal and vertical directions. This balanced structure contributes to better dimensional stability throughout the wall system.
• Easy Handling On Site：Contractors can cut the rolls with standard tools and embed them directly into fresh mortar or adhesive. The mesh conforms well to flat surfaces as well as corners, window openings and architectural details.
• Suitable For Outdoor Exposure：Fiberglass itself is non-combustible and does not rust. Combined with the protective coating, the mesh performs reliably under changing weather conditions, moisture exposure and long-term outdoor service.

Typical Applications

• Exterior Wall Insulation Systems (ETICS/EIFS)：Fiberglass mesh reinforces the base coat over EPS, XPS, rock wool and other insulation boards. It helps maintain the integrity of the insulation system while minimizing stress cracks around joints and openings.
• Waterproofing Construction：The mesh is frequently incorporated into roof waterproofing, bituminous membranes and cementitious waterproof coatings. It improves dimensional stability and reduces the risk of cracking caused by substrate movement.
• Facade Renovation：For renovation work, contractors often embed the mesh over repaired wall sections before applying fresh render. From what we have seen on renovation projects, this approach effectively bridges existing hairline cracks and helps prevent them from reflecting through the new finish.
• Gypsum Board Reinforcement：Drywall joints, ceiling connections and corner transitions benefit from additional reinforcement. The mesh reduces localized stress concentration and improves the durability of finishing compounds.
• Stone And Decorative Cladding：Thin stone panels, mosaics and ceramic finishes often require extra reinforcement during installation. A fiberglass reinforcement layer increases overall stability and lowers the risk of cracking or edge damage during handling and service.

• Fiberglass Reinforcement Layer：High-strength woven fiberglass forms the structural backbone of the product. It provides the tensile capacity needed to reinforce cement-based systems without adding significant weight.
• Uniform Woven Mesh：Regular exterior wall crack resistant mesh openings, typically 4 × 4 mm or 5 × 5 mm, create an effective balance between mortar penetration, flexibility and mechanical strength. Consistent weaving also makes installation easier and helps achieve a more uniform finished surface.
• Alkali-Resistant Coating：Each roll receives a modified acrylic coating that bonds the yarn intersections while protecting the fiberglass from alkaline degradation. In practice, coating quality has a direct influence on the service life of the mesh, especially in exterior applications.

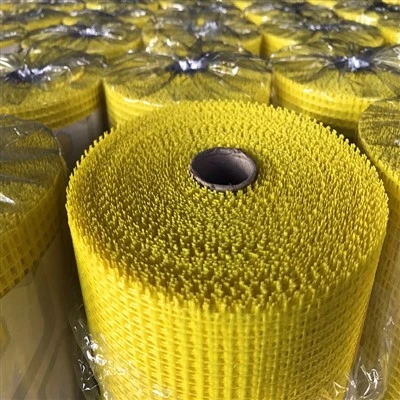

• Roll Packaging：The finished mesh is supplied in roll form for convenient transportation, storage and installation. Roll dimensions, weight, mesh size and packaging can all be adjusted to match specific project or OEM requirements.
