Wall Reinforcement Mesh

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of wall reinforcement mesh in China. With abundant experience, we warmly welcome you to wholesale bulk wall reinforcement mesh made in China here from our factory. All customized products are with high quality and competitive price.

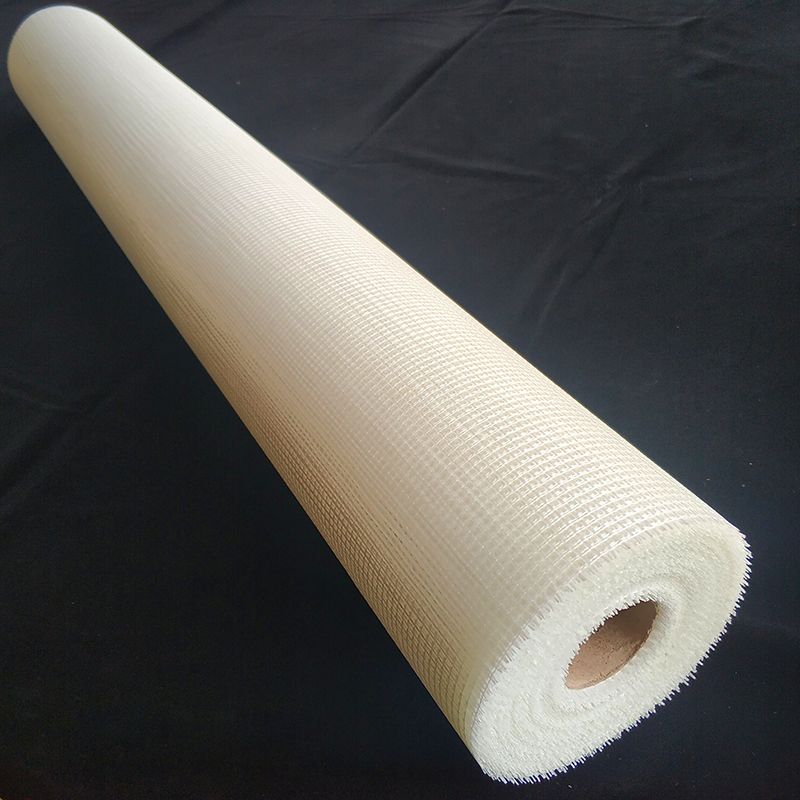

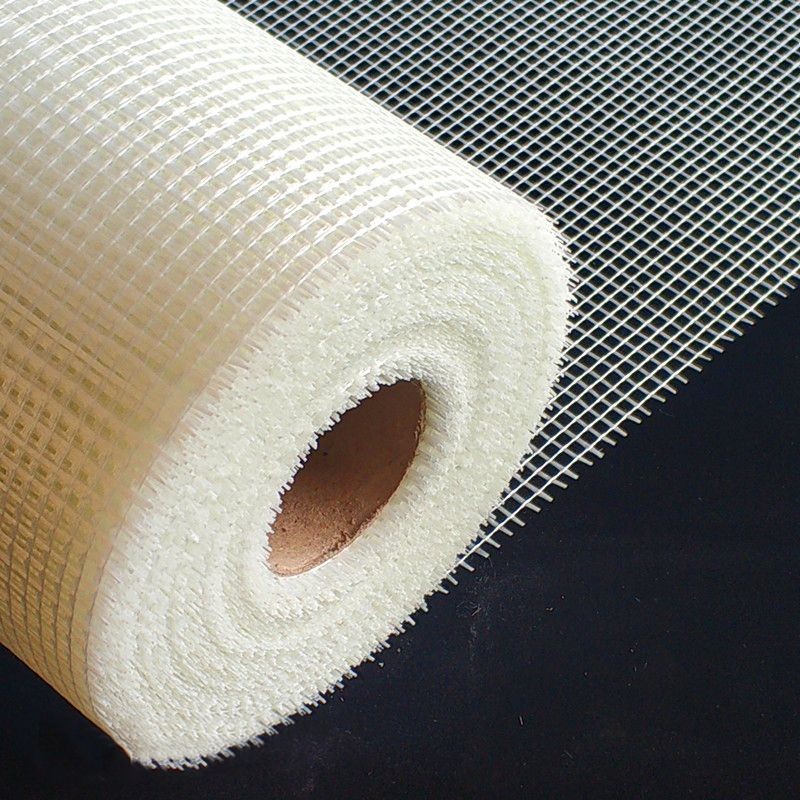

We manufacture this wall reinforcement mesh from high-strength fiberglass yarns with a protective coating applied to the surface. It's designed for improving wall stability and reducing cracking in plastering, rendering, insulation systems, and general wall strengthening work. The mesh acts as a tensile reinforcement layer within the wall build-up, not just as a surface overlay.

From our experience, cracking in plaster and render systems rarely comes from the material itself. More often, it's the substrate moving underneath-thermal changes, settling, or wind loads-that creates stress the surface layer can't handle on its own. The mesh gives that layer something to hold onto.

Working Principle

Plaster and mortar perform well under compression but have limited tensile capacity. The glass fibers in the mesh absorb tensile loads from wind pressure, seismic movement, and thermal shock-loads that would otherwise cause the render to crack or separate.



Another factor often overlooked is impact and shear resistance. By forming a continuous, interlocking matrix within the coating, the mesh significantly improves resistance to blunt force impacts-hail strikes, accidental knocks-and shear forces that can cause delamination over time.



When we apply the wall reinforcement mesh over insulation boards or mixed-material substrates, it effectively ties the whole surface together into a single, monolithic shell. This eliminates weak points at joints and seams, which we've seen in practice make a substantial difference in overall wall performance.

• High Strength：The tensile strength per unit area determines how much stress the mesh can handle before cracking develops. It's effectively the first line of defense against failure in insulation systems and decorative finishes.

• High Modulus：The elastic modulus governs how much the mesh stretches under load. We control this to provide rigid support, reducing deformation from wind pressure and thermal expansion. In our experience, this dimensional stability is what keeps rendered facades looking good over the long term.

• Lightweight：Surface density is kept low, which reduces additional dead load on wall structures and fastening components like insulation anchors. It also improves handling and speeds up installation on site.

Applications

In wall construction, we specify this wall reinforcement mesh wherever stability and crack resistance are primary concerns. It's equally suitable for new build and renovation work-we've supplied it for both applications over many years.



When stresses develop in mortar or putty from temperature changes, foundation settlement, or other factors, the mesh distributes those stresses across a wider area. In practice, this helps prevent cracks from initiating and, if they do start, stops them from extending through the wall structure.
