High Strength Fiberglass Mesh

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of high strength fiberglass mesh in China. With abundant experience, we warmly welcome you to wholesale bulk high strength fiberglass mesh made in China here from our factory. All customized products are with high quality and competitive price.

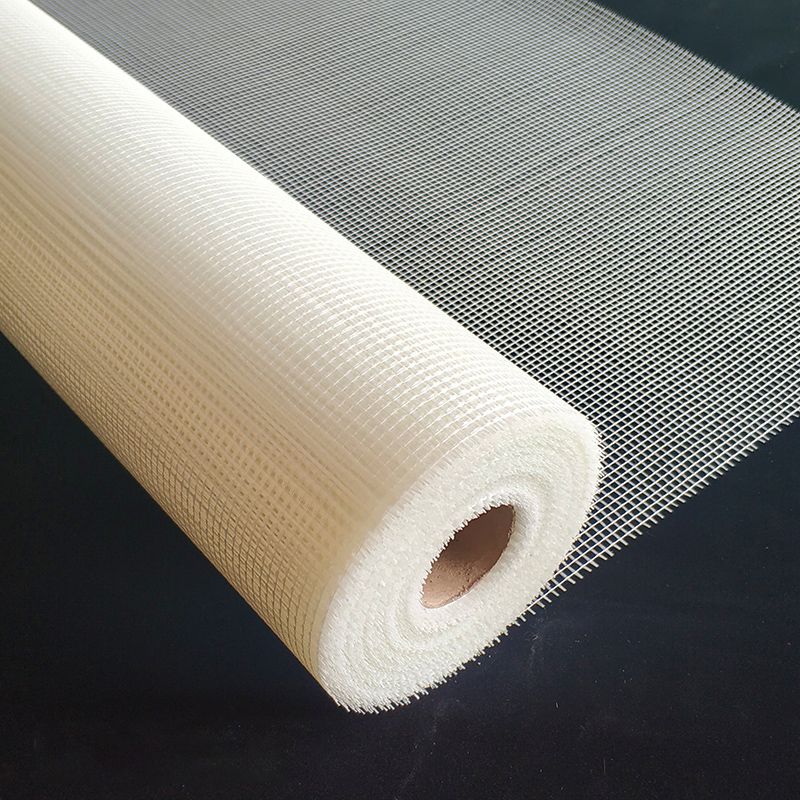

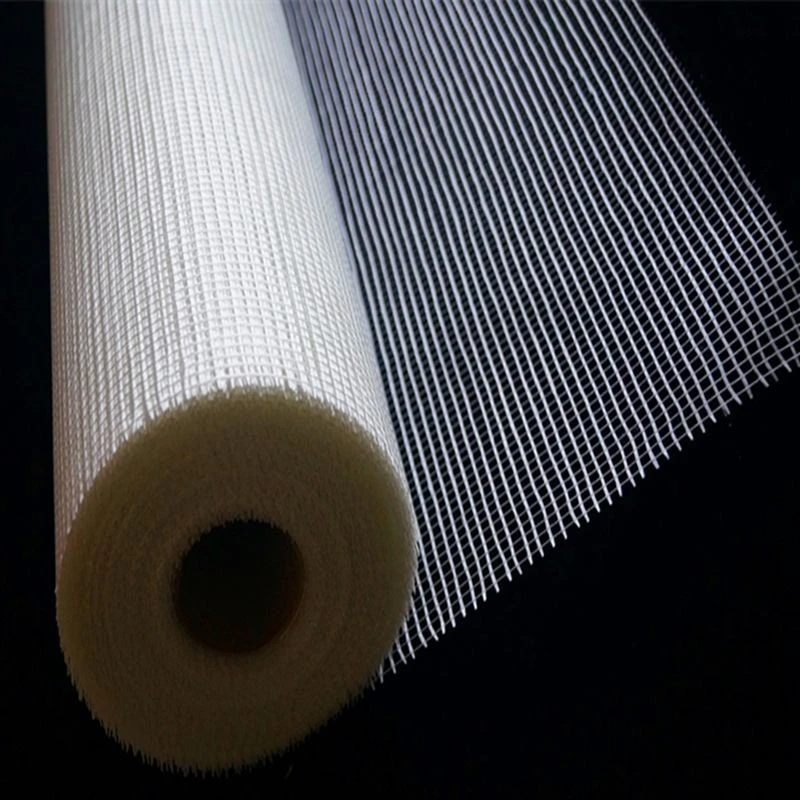

High Strength Fiberglass Mesh is produced from woven fiberglass yarns and finished with an alkali-resistant coating for use in cement-based reinforcement systems. It is intended for projects where standard fiberglass mesh cannot provide sufficient tensile performance or impact resistance.

In wall reinforcement work, mesh selection usually depends on the thickness of the render, the condition of the substrate and the expected service environment. Heavier meshes are often chosen for industrial buildings, exterior insulation systems and renovation projects where the base layer is exposed to greater movement or mechanical stress.

Working principle

The High Strength Fiberglass Mesh is woven with evenly spaced warp and weft yarns to form a stable mesh structure. During plastering or rendering, mortar passes through the mesh openings and surrounds the yarns completely. After curing, the reinforcement becomes part of the render layer instead of remaining as a separate interface. This allows tensile forces to spread across a larger area and helps reduce cracking caused by shrinkage, thermal movement or minor substrate deformation.



The quality of a fiberglass mesh depends on more than yarn strength alone. In production, coating uniformity, weave stability and fabric weight all influence the final performance. A consistent coating helps protect the fiberglass when it remains in contact with alkaline cement materials for long periods, while a stable weave keeps the mesh flat during installation and prevents distortion after embedding.

High Strength Fiberglass Mesh is compatible with cement render, polymer-modified mortar, gypsum plaster and exterior insulation systems. It is also used in precast concrete elements, repair mortars and composite cement panels where additional reinforcement is required.

Typical applications of high strength fiberglass mesh include exterior wall insulation systems, thick render reinforcement, façade renovation, concrete repair, prefabricated construction and industrial buildings. Areas around doors, windows, movement joints and material transitions are commonly reinforced because these locations are more susceptible to stress concentration during service.

Customization capabilities

The high strength fiberglass mesh is available in different mesh openings, fabric weights and roll dimensions to match local construction practices and project specifications. Common fabric weights range from 75 g/m² to 300 g/m², while mesh sizes and roll lengths can be adjusted according to application requirements.



For OEM customers, we manufacture customized specifications, including mesh size, coating type, roll width, roll length and packaging. Private-label production, printed labels and retail packaging are also available for distributors and building material brands.
