Gypsum Wall Fiberglass Mesh

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of gypsum wall fiberglass mesh in China. With abundant experience, we warmly welcome you to wholesale bulk gypsum wall fiberglass mesh made in China here from our factory. All customized products are with high quality and competitive price.

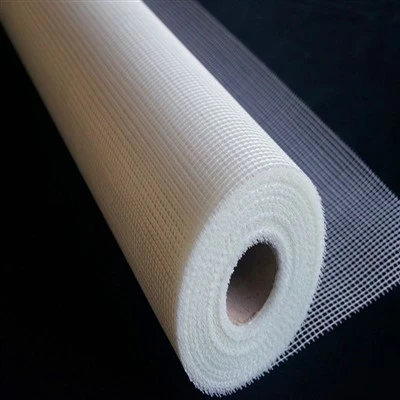

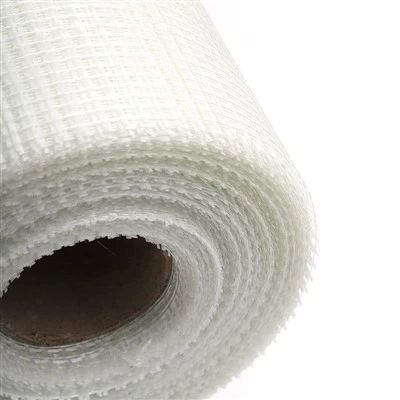

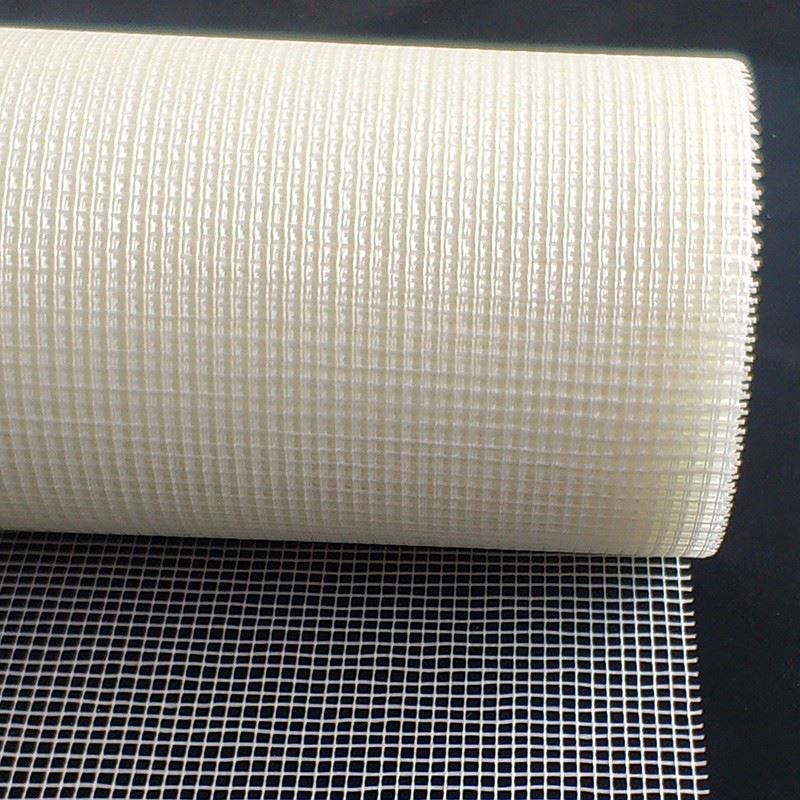

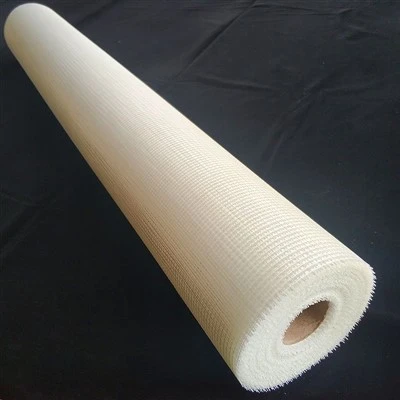

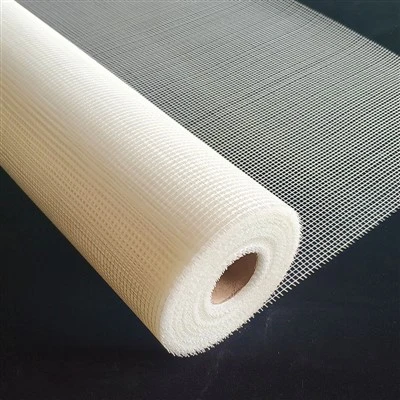

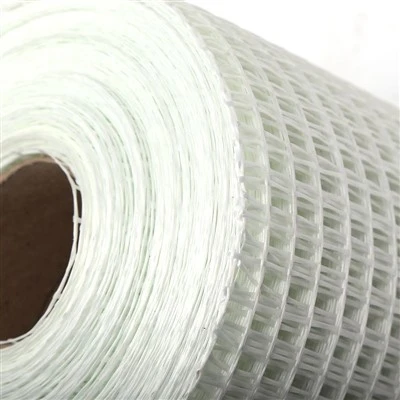

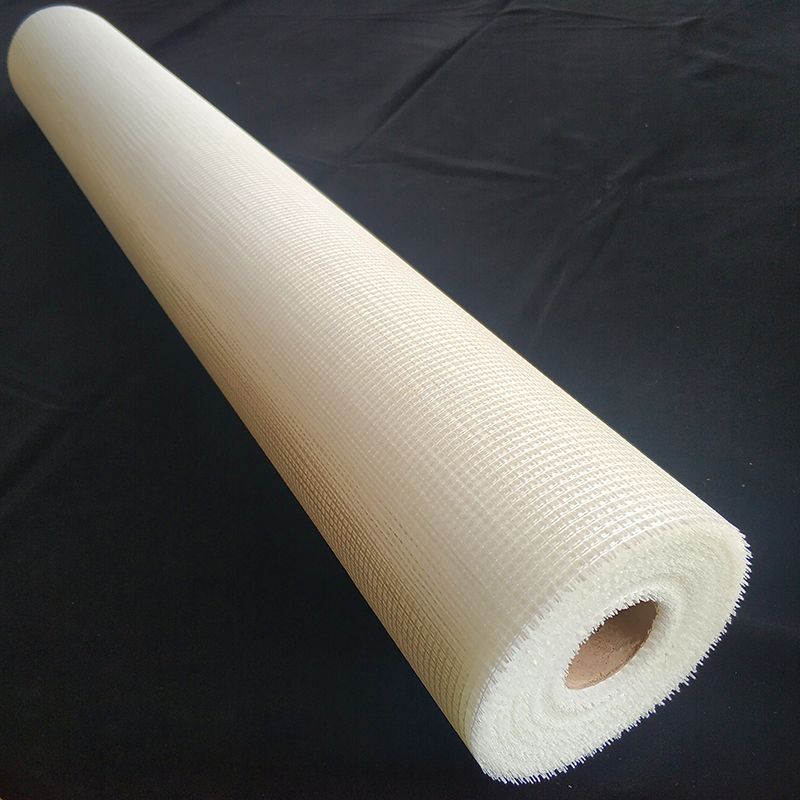

Gypsum Wall Fiberglass Mesh is woven from continuous fiberglass yarn for reinforcing gypsum-based wall systems. After weaving, we apply an alkali-resistant polymer coating so the mesh can be used with gypsum plaster, joint compound, wall putty and other interior finishing materials.

Over the years, we have noticed that cracks in gypsum finishes seldom appear in the middle of a wall. They usually show up where two materials meet, around repaired sections, above doors or near drywall joints. These areas move differently as the building settles or as indoor humidity changes. A layer of fiberglass mesh gives the plaster something stable to hold onto.

The mesh itself is light, so it does not build unnecessary thickness into the finishing layer. Once the joint compound covers it, the reinforcement stays hidden while continuing to support the surface underneath.

Installers place the gypsum wall fiberglass directly into fresh gypsum compound or plaster.

The material passes through the openings and surrounds the yarns as it hardens. After curing, the plaster and the mesh behave as one layer instead of two separate materials.

Small movement is unavoidable. Gypsum shrinks slightly during drying, ceilings move a little, and drywall joints never behave exactly the same as the surrounding board. The mesh does not stop these changes from happening. What it does is make those changes much less likely to leave a visible line on the finished wall.

One point worth mentioning is mesh placement. If it sits too close to the surface, it contributes far less than when it is fully embedded inside the compound.

We use continuous fiberglass yarn because it provides reliable reinforcement without making the fabric bulky.

The polymer coating allows the yarn to remain stable when it comes into contact with gypsum, lime-based fillers or cement-containing repair compounds.

The gypsum wall fiberglass keeps its shape well during installation. It opens flat from the roll, trims easily with a knife or scissors and fits neatly around internal corners, window reveals and ceiling joints.

Many decorators also prefer a fine woven structure because it is easier to hide beneath thin finishing coats. Less sanding is often needed before painting or wallpapering.

Typical Applications

Typical uses include:

• Gypsum plaster systems

• Drywall joint treatment

• Gypsum board finishing

• Interior wall repairs

• Ceiling joint reinforcement

• Residential housing

• Commercial interior fit-out

• Renovation and refurbishment work

Different gypsum products behave differently during curing. For that reason, we normally suggest selecting the mesh according to the plaster thickness and substrate condition instead of relying only on fabric weight.

Every production run starts with controlled yarn selection and stable weaving parameters.

After coating, we check mesh opening, coating coverage, fabric weight and tensile performance. We also pay attention to roll appearance because installers generally notice uneven edges or curled rolls long before laboratory data becomes relevant on site.

Some customers focus mainly on tensile strength. Others care more about how smoothly the mesh opens during installation. Both matter, so we keep checking both throughout production rather than concentrating on a single performance value.

Customization Capability

Construction methods vary from country to country, and gypsum systems are not always the same.

We can supply:

• Custom mesh openings

• Different fabric weights

• Roll width and length options

• Alternative coating systems

• OEM and private-label packaging

• Custom colours

• Printed labels and customer branding

When customers tell us which gypsum compound or wall system they are using, recommending a suitable gypsum wall fiberglass is usually straightforward. In many cases, a correctly matched specification performs better than simply choosing the heaviest reinforcement available.
