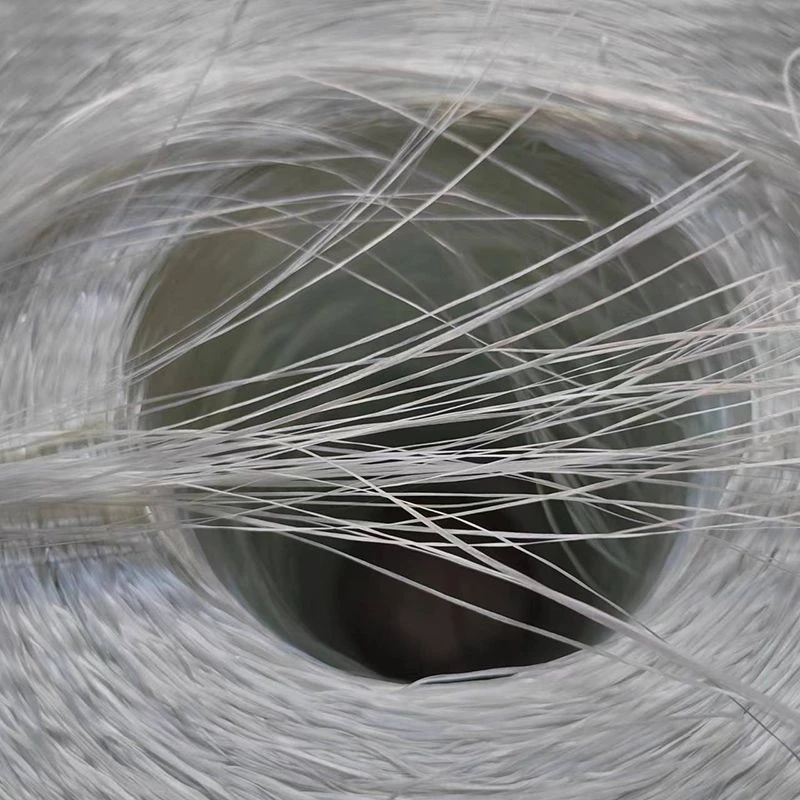

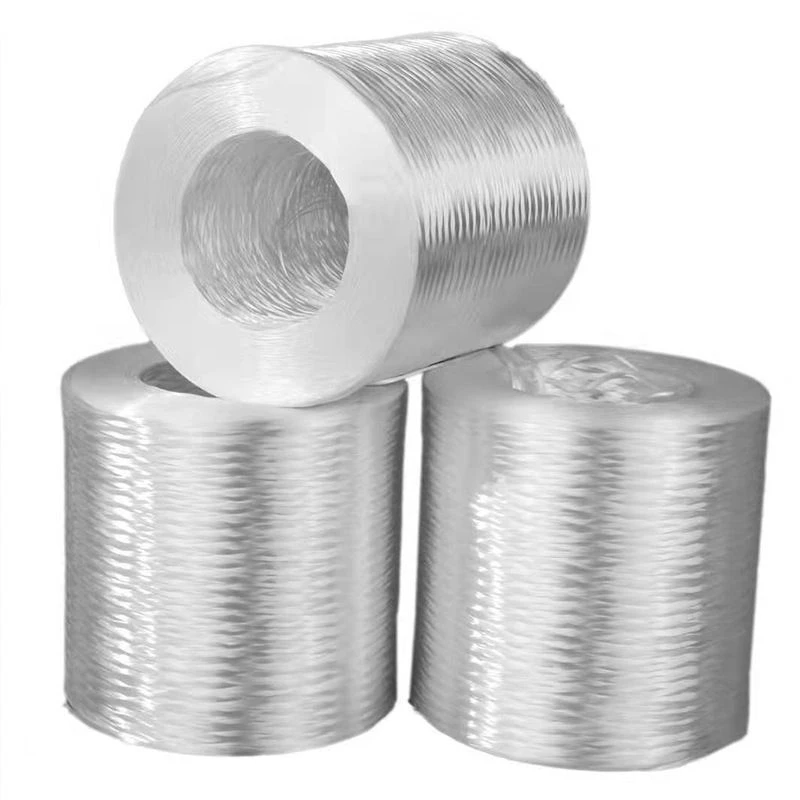

Fiberglass Yarn for EIFS Mesh

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of fiberglass yarn for eifs mesh in China. With abundant experience, we warmly welcome you to wholesale bulk fiberglass yarn for eifs mesh made in China here from our factory. All customized products are with high quality and competitive price.

Fiberglass yarn for EIFS mesh is a woven fiberglass reinforcement used in Exterior Insulation and Finish Systems (EIFS) and ETICS. It is manufactured from medium-alkali or E-glass fiberglass yarn and coated with an alkali-resistant acrylic polymer to improve durability in cement-based environments.

The coating protects the glass fibers during long-term exposure to alkaline mortars while maintaining flexibility during installation. Depending on the application, different fabric weights and mesh openings are available to provide either standard reinforcement or increased impact resistance.

Construction and Reinforcement

The fiberglass Yarn for EIFS Mesh is installed within the reinforcing base coat where it becomes fully encapsulated by the mortar layer.



Mortar has high compressive strength but relatively low tensile capacity. During curing, seasonal temperature changes or minor structural movement, tensile stresses develop inside the coating. The fiberglass fabric distributes these stresses over a larger surface instead of allowing them to concentrate in isolated areas.



From our experience, reinforcement becomes especially important around window openings, door corners and board joints. These locations experience higher stress during the service life of the façade and generally require reliable load distribution.



Once embedded correctly, the mesh and base coat work together as a composite reinforcement layer. This improves crack resistance and helps maintain the integrity of the exterior finish.

The woven construction provides stable tensile reinforcement without adding significant weight to the wall system.

The alkali-resistant coating helps preserve the mechanical properties of the glass fibers after prolonged contact with cementitious materials.

Uniform yarn spacing allows the reinforcing mortar to penetrate the fabric evenly, creating consistent bonding throughout the reinforced layer. Another factor often overlooked is that consistent mesh geometry also contributes to more predictable installation quality on large façade areas.

Fiberglass itself remains dimensionally stable over a wide temperature range and performs reliably under normal weather exposure. This makes the material suitable for both residential and commercial exterior insulation systems.

Typical Applications

Fiberglass yarn for EIFS mesh is primarily used as the reinforcing fabric for polymer-modified base coats in exterior insulation systems.



Typical applications include standard wall reinforcement, high-impact façade areas, corner detailing, reinforcement around openings, insulation board joints and repair work on existing EIFS installations.



The same construction technology is also used to manufacture reinforcement fabrics for insulation composite panels, decorative façade boards and other cement-based building products where crack control and dimensional stability are required.

Different projects require different reinforcement levels, so the fabric can be supplied in a range of constructions and specifications.

Available options include different fabric weights, mesh openings, yarn tex, coating formulations and roll dimensions. Heavy-duty grades are available for impact-resistant façade systems, while lighter constructions are commonly selected for standard EIFS reinforcement.

OEM production is available with customized roll lengths, packaging, carton printing and private-label identification according to customer requirements.
