Fiberglass Yarn for Mesh

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of fiberglass yarn for mesh in China. With abundant experience, we warmly welcome you to wholesale bulk fiberglass yarn for mesh made in China here from our factory. All customized products are with high quality and competitive price.

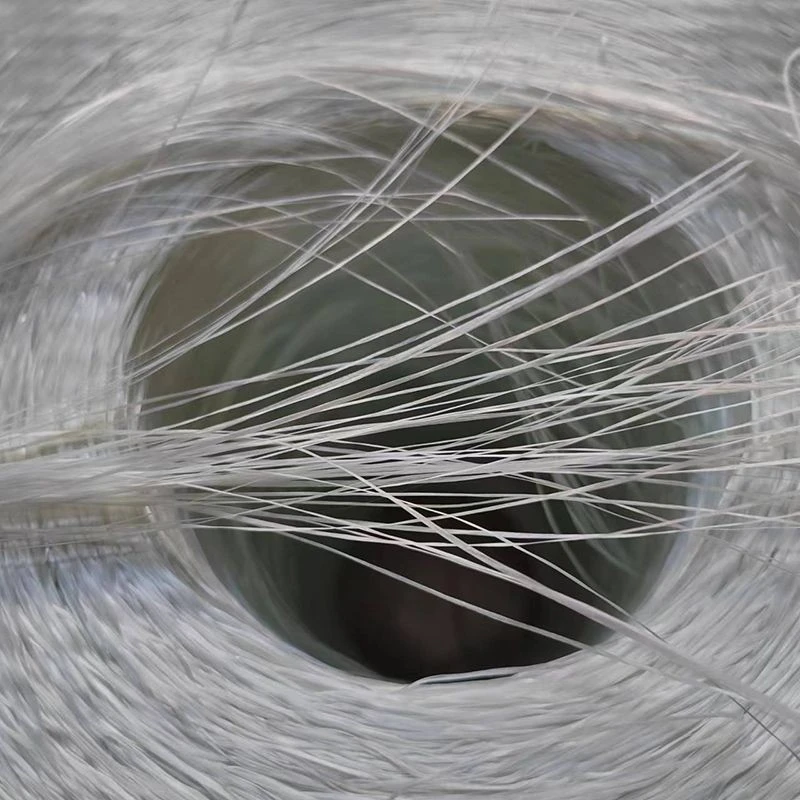

Fiberglass Yarn for Mesh is manufactured from continuous E-glass filaments for the production of woven reinforcement fabrics. The yarn is intended for fiberglass mesh used in exterior insulation systems, cement reinforcement, drywall accessories, waterproofing products, and industrial composite applications.

During production, individual filaments are gathered into yarns with controlled linear density and package construction. A dedicated sizing is applied before winding to improve weaving performance and compatibility with subsequent polymer coating processes.

The characteristics of the finished mesh begin with the yarn itself. Uniform filament distribution, stable winding, and controlled package density contribute to consistent fabric construction throughout the weaving process.

Manufacturing

Production starts with continuous glass filaments drawn from molten glass and assembled into yarn packages. The selected tex, filament diameter, and sizing system depend on the mesh construction to be produced.



The sizing performs several functions during downstream processing. It protects the filaments from abrasion, improves yarn cohesion during weaving, and promotes adhesion between the woven fabric and the coating system applied after weaving.



Once woven, the mesh normally enters an acrylic coating line where the intersections are fixed and the fabric geometry is stabilized.

Yarn quality becomes visible during weaving rather than during package inspection.

Stable unwinding supports uniform warp tension across the loom width. Consistent filament distribution helps maintain regular mesh openings, particularly in lightweight fabrics where dimensional variation is more apparent.

During coating, uniform yarn construction promotes even polymer pickup across the fabric surface. This contributes to consistent mesh appearance and reduces distortion during drying.

Typical Product Characteristics

• Glass Type：E-glass continuous filament

• Surface Treatment：Sizing formulated for weaving and polymer coating systems

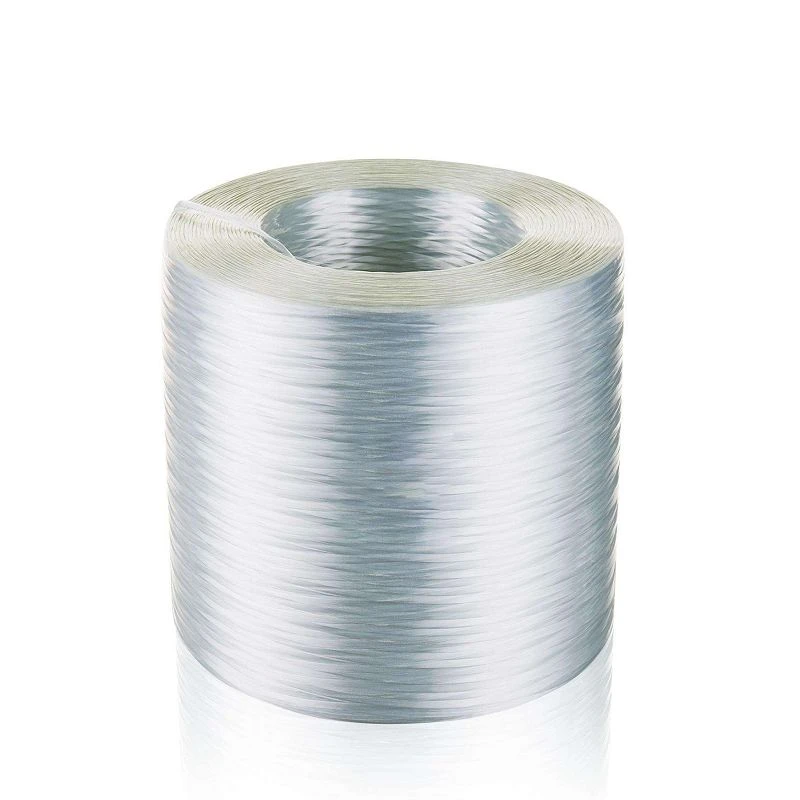

• Package Configuration：Cylindrical or conical packages

• Appearance：Natural white

• Processing Compatibility：Suitable for warp weaving and coating operations used in fiberglass mesh production

Detailed technical values, including linear density (Tex), filament diameter, package weight, and other production parameters, are supplied according to the selected product specification.

The yarn is converted into woven fiberglass mesh for ETICS and EIFS reinforcement systems, rendering fabrics, waterproofing scrims, drywall joint tapes, corner tapes, wall-covering substrates, insulation facings, and composite reinforcement materials.

Depending on the yarn specification, manufacturers also use the material for stone backing fabrics, filtration substrates, geogrids, and other industrial woven products.

Available constructions include different tex ranges, filament diameters, sizing formulations, package dimensions, and winding configurations.

Selection normally depends on weaving equipment, coating technology, and the final mesh specification. Where processing requirements differ between production lines, yarn construction can be matched to customer manufacturing conditions.
