Wall Repair Fiberglass Tape

Danyang Yonggu Building Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of wall repair fiberglass tape in China. With abundant experience, we warmly welcome you to wholesale bulk wall repair fiberglass tape made in China here from our factory. All customized products are with high quality and competitive price.

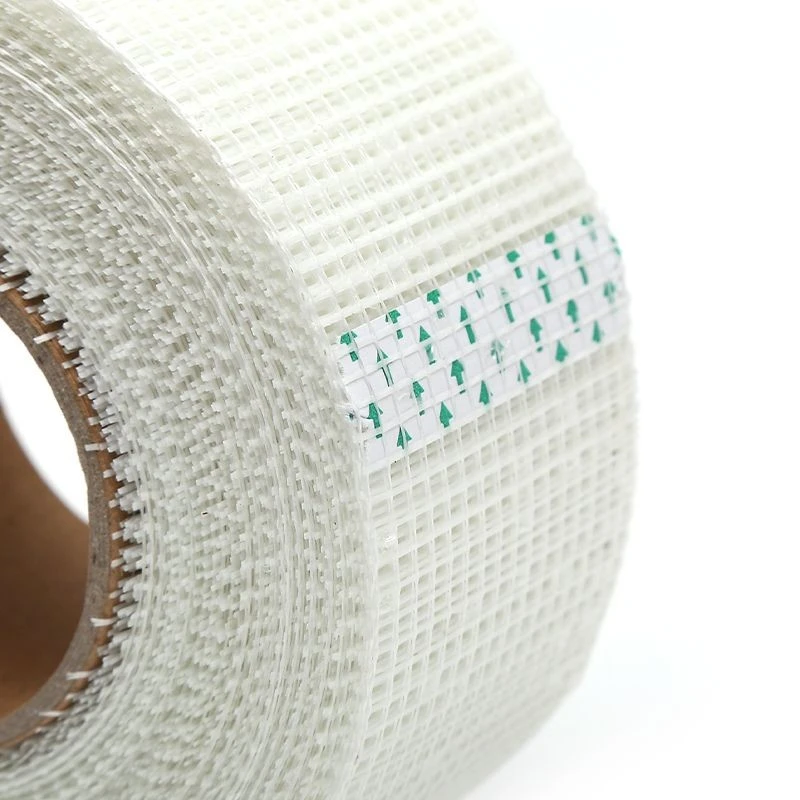

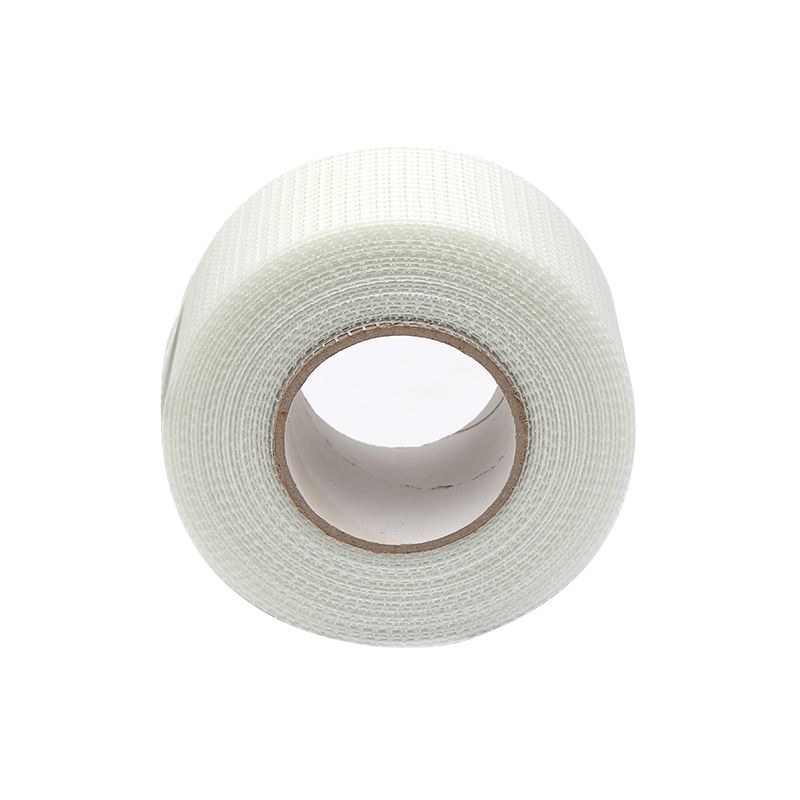

This wall repair fiberglass tape consists of a woven fiberglass scrim coated on one side with an acrylic pressure-sensitive adhesive. We manufacture it specifically for reinforcing drywall joints, repairing surface cracks, and strengthening localized areas before finishing. The open-weave construction allows joint compounds, plasters, and cementitious repair materials to pass through the mesh during application, while the adhesive holds the tape in position until the repair material sets.

Once embedded, the tape functions as an integral reinforcement layer within the repair, not as a surface patch. It increases the tensile capacity of the finished section and distributes localized stresses that typically develop around joints, repair perimeters, and substrate transitions.

The wall repair fiberglass tape is suitable for use on gypsum board, plastered walls, cement boards, and most other mineral-based substrates that require additional reinforcement prior to surface finishing.

Working Principle

Installation involves placing the tape directly over the repair area with the adhesive side against the substrate. The applicator then applies repair material through the mesh openings until the scrim is fully encapsulated.



After the compound cures, the repair material and fiberglass reinforcement form a composite layer. The mesh restricts localized stress concentration within the repaired zone while maintaining continuity across joints and existing cracks. The open construction also promotes mechanical interlocking between the repair compound and the substrate, which contributes to long-term adhesion.

We weave the reinforcing scrim from E-glass or medium-alkali fiberglass yarns, using a plain or leno weave pattern depending on the grade. The resulting fabric offers consistent tensile properties and dimensional stability, making it effective for crack control in gypsum-based and cementitious systems.

A polymer coating is applied to the fiberglass yarns to protect them against alkaline attack from cement, mortar, and plaster. This surface treatment enhances long-term durability and helps preserve the mechanical properties of the mesh throughout the service life of the finished assembly.

The acrylic adhesive layer functions as a temporary fixing aid during installation, eliminating the need for staples, tacks, or separate bonding agents before the repair compound is applied. The adhesive is not intended to provide structural bonding after the compound has cured.

The open scrim construction is designed to allow repair materials to flow through and fully encapsulate the glass reinforcement. In practice, this produces a continuous reinforced layer with good adhesion between the repair compound and the substrate. The mesh opening size and yarn count are controlled to balance compound penetration with reinforcement efficiency. Tighter weaves provide higher tensile strength, while more open weaves allow faster compound flow and better mechanical keying.

Because the fiberglass reinforcement is inherently moisture-resistant and biologically inert, the tape performs reliably under normal interior and exterior conditions. It retains dimensional stability across a wide temperature range and does not degrade through fungal or bacterial activity.

The alkali-resistant coating further extends service life when the tape is embedded in cement-based or plaster systems, where pH levels can exceed 12. In our exposure tests, coated samples maintained tensile retention within acceptable limits after extended contact with alkaline matrices.

Typical Applications

This wall repair fiberglass tape is specified as local reinforcement in the following finishing and repair systems:

• Drywall joint treatment： Reinforcing butt joints, tapered edges, and flat seams in gypsum board assemblies

• Wall and ceiling crack repair：Bridging hairline and moderate cracks in plaster, drywall, and masonry surfaces

• Plaster restoration：Reinforcing patched areas and new plaster applications over existing substrates

• Cement board joint treatment：Joint reinforcement in tile backer board and cement panel systems

• Corner and transition reinforcement：Strengthening internal and external corners, and transitions between different wall materials

• Service penetrations：Reinforcing around electrical outlets, pipe chases, and cutouts where stresses tend to concentrate

• EIFS and rendered façades：Local reinforcement in exterior insulation and finish systems and decorative render applications

The wall repair fiberglass tape is compatible with gypsum-based joint compounds, polymer-modified mortars, cement-based repair materials, and most conventional interior finishing compounds. We recommend a small compatibility test with the specific repair compound before full-scale application, as formulation variations between products can affect wet-out, adhesion, and cure characteristics. In practice, we have observed that compound viscosity is the main variable influencing embedding quality, and adjusting application technique accordingly yields the best results.

Standard roll widths are 50 mm, 75 mm, and 100 mm, with roll lengths typically ranging from 20 m to 90 m. Other dimensions can be produced to order, subject to minimum quantities. The tape is wound on coreless rolls or plastic cores and packed in moisture-resistant film for protection during storage and transport. Shelf life under proper storage conditions (cool, dry, and away from direct sunlight) is 12 months from the production date.
